Wir liefern, produzieren und exportieren an unsere Kunden, eine breite Palette von Stahlschweißen wie weldolet, die in Bereichen wie Zuckerindustrie, Ölraffinerien, Strukturrohr, Düngemittel Pflanzen, Zement-Industrie, Petrochemikalien Pflanzen usw. verwendet werden. Lieferbare Typen von Auslaufarmaturen wie zB Weldolet Armaturen in Deutschland, Bochum, Stuttgart, Augsburg, Leipzig, Bielefeld, Bonn, Frankfurt, Düsseldorf. Diese können zu angemessenen Preisen erworben werden. Unsere Schweißfitting-Produkte werden aus hochwertigen Komponenten hergestellt.
Wir liefern und exportieren unsere weldolet-Produkte an Kunden in verschiedenen Branchen einschließlich Maschinenbau, Kraftwerke und Pharmazie, Petrochemie, Chemie und verschiedenen anderen Industrien. Die beste Qualität Stahlschweissdose werden von uns gehandelt. Diese Auslassfittings sind bei uns in Edelstahl ASTM A182, Typ F 304, 304L, 316, 316L, 310S, 321, 321H, 317, 347, 904L erhältlich.
| Größenbereich - 1/2" to 24" in |
| Klasse - 3000 LBS, 6000 LBS, 9000 LBS verfügbar mit NACE MR 01-75. |
| Materialien - Edelstahl, legierter Stahl, Duplex, Super Duplex, Kohlenstoffstahl, Nickellegierung, niedrige Temperatur |
| Edelstahl-Weldolet |
| ASTM A182, ASME SA182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L. |
| Kupferlegierungen Weldolet |
| ASTM B61 / B62 / B151 / B152 / ASME SB61 / SB62 / SB151 / SB152 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
| Kohlenstoffstahl Weldolet |
| ASTM A105 / A694 / A350 LF3 / A350 LF2 F42/46/52/56/60/65/70 |
| Legierter Stahl Weldolet |
| ASTM A182 / ASME SA182 GR F1, F5, F 9, F 11, F 12, F 22, F 91. |
| Duplex stahl Weldolet |
| ASTM A182 / ASME SA182 –F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 S31803, S32205, S32550, S32750, S32760 |
| Nickel-Legierung Weldolet |
| ASTM B564 / B160 / B472 / ASME SB564 / SB160 / SB472 Nickel Alloy 200 Weldolet – UNS N02200 Nickel Alloy 201 Weldolet – UNS N02201 Monel 400 Weldolet – UNS N04400 Monel K500 Weldolet – UNS N05500 Inconel K600 Weldolet – UNS N06600 Inconel 601 Weldolet – UNS N06601 Inconel 625 Weldolet – UNS N06625 Inconel 800 Weldolet – UNS N08800 Inconel 800H Weldolet – UNS N08810 Inconel 825 Weldolet – UNS N08825 Hastelloy C276 Weldolet – UNS N10276 Alloy 20 Weldolet – UNS N08020 |
Hersteller Prüfbescheinigung nach EN 10204 / 3.1
 |
||||||||||||
| Abmessungen Größe nach Größe Weldolet® - STD - MSS SP 97 |
| NPS | A | B | C | D | L | |
| 1/2 | INCH MM |
3/4 19.05 |
1-3/8 34.93 |
15/16 23.81 |
5/8 15.88 |
1-3/16 30.16 |
| 3/4 | INCH MM |
7/8 22.23 |
1-5/8 41.28 |
1-3/16 30.16 |
13/16 20.64 |
1-7/16 36.51 |
| 1 | INCH MM |
1-1/16 26.99 |
2 50.80 |
1-7/16 36.51 |
1-1/32 26.19 |
1-1/16 26.99 |
| 1¼ | INCH MM |
1-1/4 31.75 |
2-3/8 60.3 |
1-3/4 44.45 |
1-3/8 34.93 |
2-1/16 52.39 |
| 1½ | INCH MM |
1-5/16 33.34 |
2-7/8 73 |
2 50.80 |
1-5/8 41.28 |
2-1/4 57.15 |
| 2 | INCH MM |
1-1/2 38.10 |
3-1/2 88.90 |
2-9/16 65.09 |
2-1/16 52.39 |
2-11/16 68.26 |
| 2½ | INCH MM |
1-5/8 41.28 |
4-1/16 103.19 |
3 76.20 |
2-7/16 61.91 |
3-1/16 77.79 |
| 3 | INCH MM |
1-3/4 44.45 |
4-13/16 122.24 |
3-11/16 93.66 |
3-1/16 77.79 |
3-1/2 88.90 |
| 3½ | INCH MM |
2 50.80 |
5-3/8 136.53 |
3-7/8 98.43 |
3-9/16 90.49 |
3-7/8 98.43 |
| 4 | INCH MM |
2 50.80 |
6 152.40 |
4-3/4 120.65 |
4 101.60 |
4-1/4 107.95 |
| 5 | INCH MM |
2-1/4 57.15 |
7-1/8 180.98 |
5-9/16 141.29 |
5-1/16 128.59 |
5-1/16 128.59 |
| 6 | INCH MM |
2-3/8 60.3 |
8-1/2 215.90 |
6-11/16 169.86 |
6-1/16 153.99 |
5-11/16 144.46 |
| 8 | INCH MM |
2-3/4 69.85 |
10-3/8 263.53 |
8-11/16 220.66 |
7-15/16 201.61 |
7-1/16 179.39 |
| 10 | INCH MM |
3-1/16 77.79 |
12-9/16 319.09 |
10-13/16 274.64 |
10 254.00 |
8-7/16 214.31 |
| 12 | INCH MM |
3-3/8 85.73 |
14-7/8 377.83 |
12-13/16 325.44 |
12 304.80 |
9-3/4 247.65 |
| 14 | INCH MM |
3-1/2 88.90 |
16-1/8 409.58 |
14-1/16 357.19 |
13-1/4 336.55 |
10-1/2 266.70 |
| 16 | INCH MM |
3-11/16 93.66 |
18-1/4 463.55 |
16-1/16 407.99 |
15-1/4 387.35 |
11-11/16 296.86 |
| 18 | INCH MM |
4-1/16 103.19 |
20-3/4 527.05 |
18-5/8 473.08 |
17-1/4 438.15 |
13-1/16 331.79 |
| 20 | INCH MM |
4-5/8 117.48 |
23-1/16 585.79 |
20-1/16 509.59 |
19-1/4 488.95 |
14-5/8 371.48 |
| 24 | INCH MM |
5-3/8 136.53 |
27-7/8 708.03 |
25-1/8 638.18 |
23-1/4 590.55 |
17-3/8 441.33 |
| NPS | A | B | C | D | L |
 |
||||||||||||

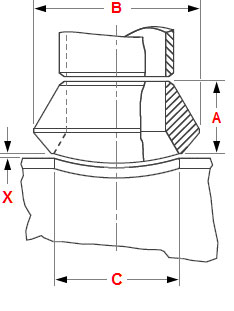

| Abmessungen Weldolet® Reduzieren - STD - MSS SP 97 |
| NPS | A | B | C | |
| 1/2 | INCH MM |
3/4 19.05 |
1-3/8 34.93 |
15/16 23.81 |
| 3/4 | INCH MM |
7/8 22.23 |
1-3/4 44.45 |
1-3/16 30.16 |
| 1 | INCH MM |
1-1/16 26.99 |
2-1/8 53.98 |
1-7/16 36.51 |
| 1¼ | INCH MM |
1-1/4 31.75 |
2-9/16 65.09 |
1-3/4 44.45 |
| 1½ | INCH MM |
1-5/16 33.34 |
2-7/8 73 |
2 50.80 |
| 2 | INCH MM |
1-1/2 38.10 |
3-1/2 88.90 |
2-9/16 65.09 |
| 2½ | INCH MM |
1-5/8 41.28 |
4-1/16 103.19 |
3 76.20 |
| 3 | INCH MM |
1-3/4 44.45 |
4-13/16 122.24 |
3-11/16 93.66 |
| 3½ | INCH MM |
1-7/8 47.63 |
5-5/8 142.88 |
4 101.60 |
| 4 | INCH MM |
2 50.80 |
6 152.40 |
4-3/4 120.65 |
| 5 | INCH MM |
2-1/4 57.15 |
7-1/16 179.39 |
5-9/16 141.29 |
| 6 | INCH MM |
2-3/8 60.3 |
8-1/2 215.90 |
6-11/16 169.86 |
| 8 | INCH MM |
2-3/4 69.85 |
10-3/8 263.53 |
8-11/16 220.66 |
| 10 | INCH MM |
3-1/16 77.79 |
12-11/16 322.26 |
10-13/16 274.64 |
| 12 | INCH MM |
3-3/8 85.73 |
14-7/8 377.83 |
12-13/16 325.44 |
| 14 | INCH MM |
3-1/2 88.90 |
16-1/8 409.58 |
14-1/16 357.19 |
| 16 | INCH MM |
3-11/16 93.66 |
18-1/4 463.55 |
16-1/16 407.99 |
| 18 | INCH MM |
3-13/16 96.84 |
20-1/2 520.70 |
18-1/16 458.79 |
| 20 | INCH MM |
4 101.60 |
22-1/2 571.50 |
20 508.00 |
| 24 | INCH MM |
4-9/16 115.89 |
27-1/8 688.98 |
24-3/16 614.36 |
| NPS | A | B | C |
Abmessungen ( L ) Mittellinie der Rohrleitung zur Stirnfläche von Weldolet
| NPS | Ausgangsgrößen STD und XS NPS 1/2 - 4 | ||||||||||
| 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 31/2 | 4 | ||
| 3/4 | INCH |
1-1/4 31.75 |
|||||||||
| 1 | INCH |
1-3/8 34.92 |
1-1/2 38.10 |
||||||||
| 1¼ | INCH |
1-9/16 39.68 |
1-11/16 42.86 |
1-7/8 47.62 |
|||||||
| 1½ | INCH |
1-11/16 42.86 |
1-13/16 46.03 |
2 50.80 |
2-3/16 55.56 |
||||||
| 2 | INCH |
1-15/16 49.21 |
2-1/16 52.38 |
2-1/4 57.15 |
2-7/16 61.91 |
2-1/2 63.50 |
|||||
| 2½ | INCH |
2-3/16 55.56 |
2-5/16 58.73 |
2-1/2 63.50 |
2-11/16 68.26 |
2-3/4 69.85 |
2-15/16 74.61 |
||||
| 3 | INCH |
2-1/2 63.5 |
2-5/8 66.67 |
2-13/16 71.43 |
3 76.20 |
3-1/16 77.78 |
3-1/4 82.55 |
3-3/8 85.72 |
|||
| 3½ | INCH |
2-3/4 69.85 |
2-7/8 73.02 |
3-1/16 77.78 |
3-1/4 82.55 |
3-5/16 84.13 |
3-1/2 88.9 |
3-5/8 92.07 |
3-3/4 95.25 |
||
| 4 | INCH |
3 76.2 |
3-1/8 79.37 |
3-5/16 84.13 |
3-1/2 88.90 |
3-9/16 90.48 |
3-3/4 95.25 |
3-7/8 98.42 |
4 101.60 |
4-1/8 104.77 |
|
| 5 | INCH |
3-9/16 90.48 |
3-11/16 93.66 |
3-7/8 98.42 |
4-1/16 103.18 |
4-1/8 104.77 |
4-5/16 109.53 |
4-7/16 112.71 |
4-9/16 115.88 |
4-11/16 119.06 |
4-13/16 122.23 |
| 6 | INCH |
4-1/16 103.18 |
4-3/16 106.36 |
4-3/8 111.12 |
4-9/16 115.88 |
4-5/8 117.47 |
4-13/16 122.23 |
4-15/16 125.41 |
5-1/16 128.58 |
5-3/16 131.76 |
5-5/16 134.93 |
| 8 | INCH |
5-1/16 128.58 |
5-3/16 131.76 |
5-3/8 136.52 |
5-9/16 141.28 |
5-5/8 142.87 |
5-13/16 147.63 |
5-15/16 150.81 |
6-1/16 153.98 |
6-3/16 157.16 |
6-5/16 160.3 |
| 10 | INCH |
6-1/8 155.57 |
6-1/4 158.75 |
6-7/16 163.51 |
6-5/8 168.27 |
6-11/16 169.86 |
6-7/8 174.62 |
7 177.8 |
7-1/8 180.97 |
7-1/4 184.15 |
7-3/8 187.32 |
| 12 | INCH |
7-1/8 180.97 |
7-1/4 184.15 |
7-7/16 188.91 |
7-5/8 193.67 |
7-11/16 195.26 |
7-7/8 200.02 |
8 203.20 |
8-1/8 206.37 |
8-1/4 209.55 |
8-3/8 212.72 |
| 14 | INCH |
7-3/4 196.85 |
7-7/8 200.02 |
8-1/16 204.78 |
8-1/4 209.55 |
8-5/16 211.13 |
8-1/2 215.90 |
8-5/8 219.07 |
8-3/4 222.25 |
8-7/8 225.42 |
9 228.60 |
| 16 | INCH |
8-3/4 222.25 |
8-7/8 225.42 |
9-1/16 230.18 |
9-1/4 234.95 |
9-5/16 236.53 |
9-1/2 241.30 |
9-5/8 244.47 |
9-3/4 247.65 |
9-7/8 250.82 |
10 254.00 |
| 18 | INCH |
9-3/4 247.65 |
9-7/8 250.82 |
10-1/16 255.58 |
10-1/4 260.35 |
10-5/16 261.93 |
10-1/2 266.70 |
10-5/8 269.87 |
10-3/4 273 |
10-7/8 276.22 |
11 279.40 |
| 20 | INCH |
10-3/4 273 |
10-7/8 276.22 |
11-1/16 280.98 |
11-1/4 285.75 |
11-5/16 287.33 |
11-1/2 292.10 |
11-5/8 295.27 |
11-3/4 298.45 |
11-7/8 301.62 |
12 304.80 |
| 24 | INCH |
12-3/4 323.9 |
12-7/8 327.02 |
13-1/16 331.78 |
13-1/4 336.55 |
13-5/16 338.13 |
13-1/2 342.90 |
13-5/8 346.07 |
13-3/4 349.25 |
13-7/8 352.42 |
14 355.60 |
| NPS | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 31/2 | 4 | |
| Ausgangsgrößen STD und XS NPS 1/2 - 4 | |||||||||||
Abmessungen ( L ) Mittellinie der Rohrleitung zur Stirnfläche von Weldolet
| NPS | Outlet Size STD NPS 5 - 20 | |||||||||
| 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | ||
| 6 | INCH |
5-9/16 141.28 |
||||||||
| 8 | INCH |
6-9/16 166.68 |
6-11/16 169.86 |
|||||||
| 10 | INCH |
7-5/8 193.67 |
7-3/4 196.85 |
8-1/8 206.37 |
||||||
| 12 | INCH |
8-5/8 219.07 |
8-3/4 222.25 |
9-1/8 231.77 |
9-7/16 239.71 |
|||||
| 14 | INCH |
9-1/4 234.95 |
9-3/8 238.12 |
9-3/4 247.65 |
10-1/16 255.58 |
10-3/8 263.52 |
||||
| 16 | INCH |
10-1/4 260.35 |
10-3/8 263.52 |
10-3/4 273 |
11-1/16 280.98 |
11-3/8 288.92 |
11-1/2 292.10 |
|||
| 18 | INCH |
11-1/4 285.75 |
11-3/8 288.92 |
11-3/4 298.45 |
12-1/16 306.38 |
12-3/8 314.32 |
12-1/2 317.50 |
12-11/16 322.26 |
||
| 20 | INCH |
12-1/4 311.15 |
12-3/8 314.32 |
12-3/4 323.9 |
13-1/16 331.78 |
13-3/8 339.72 |
13-1/2 342.90 |
13-11/16 347.66 |
13-13/16 350.83 |
|
| 24 | INCH |
14-1/4 361.95 |
14-3/8 365.12 |
14-3/4 374.65 |
15-1/16 382.58 |
15-3/8 390.52 |
15-1/2 393.70 |
15-11/16 398.46 |
15-13/16 401.63 |
16 406.40 |
| NPS | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
| Ausgangsgröße STD NPS 5 - 20 | ||||||||||
Allgemeine Hinweise:
Wurzelspalt - X - "Raum" zum Schweißen des O'let wird von dem Laufrohr abgehoben, um einen geeigneten Schweißspalt durch Platzieren von Abstandhaltern, z. Schweißstäbe, unter der Armatur. Dies stellt einen gleichmäßigen Schweißspalt zwischen der Krümmung des Laufs und der Basis des Fittings bereit.
X = Wurzelabstand nicht in L-Maß enthalten.
L = Abmessungen Mittellinie der Rohrleitung zur Stirnfläche von Weldolet.
Abgeschrägte Enden ASME B16.9 und B16.25.
Quelle kommt von Bonney Forge (außer den Größen in Millimetern).
Weldolet® ist ein eingetragener Name. Ein anderer oft verwendeter Name ist Welding Outlet.
